KSD308 KSD307 Thermostat 75C 110C 85C 95C 45A 50A 63A for Electric Water Heater

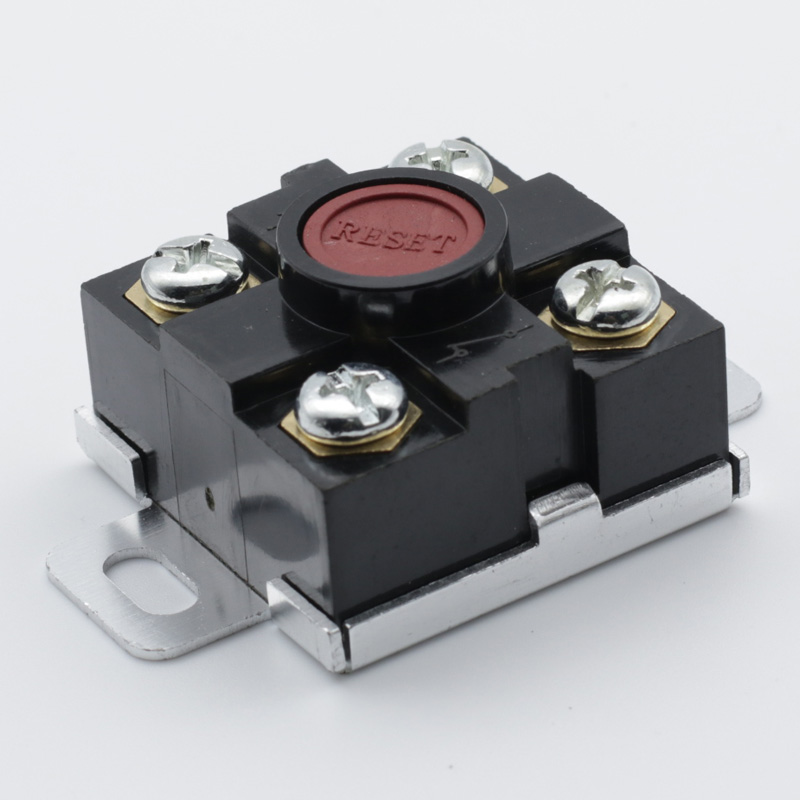

The series of KSD307 KSD308 thermostat that is of double-pole structure falls in the category of manual reset type temperature controller. The product series, safety and reliable, is used in high-duty electric water heater for overheating protection. When the instant snap of bimetal disc occurs at certain temperature, two contacts separate promptly by means of mechanical transition and simultaneously two-phase circuit disconnects in order to completely cut off power supply. Pressing reset lever will restore the power supply.(heavy-duty thermostat)
Technical Requirements of KSD308 KSD307 Thermostat 75C 110C 85C 95C 45A 50A 63A
1)rated voltage and current: AC250/45A-63A
2)open temperature range: 20-150C(Normally closed/manual reset)
3)electrical strength
A: between the shell and the wiring terminal, it can withstand AC1500V/ 0.5ma and does not break down or flash for 1min.
B: after disconnection, it can withstand AC800V/ 0.5ma, 3S without breakdown and flicker.
4)Insulation resistance: under normal≥100MΩ
5)contact resistance: ≤50M Ω
6)shell material is bakelite shell
| Use | Overheat Protection |
| Appliance | Water heater(heater thermostat) |
| Reset type | Manual |
| Base material | Resist heat resin base |
| Max. amperage | 63A |
| Max. operating temperature | 150℃ |
Working Principle of KSD308 KSD307 Thermostat 75C 110C 85C 95C 45A 50A 63A
Bipolar jump thermostat is a bimetal thermostat with a shell. The use of disc-type bimetallic film in the role of the moment under the principle of instantaneous beating, through the role of mechanical structure, so that the two groups of contacts quickly action to achieve the same time to disconnect or turn on the purpose of bipolar circuit.
Features of KSD308 KSD307 Thermostat 75C 110C 85C 95C 45A 50A 63A
60A big current, over-current parts are integral,temperature response fast, high temperature accuracy, reliable action simply, long service life.
Usage of KSD308 KSD307 Thermostat 75C 110C 85C 95C 45A 50A 63A
Widely used in a variety of electric appliances, such as hot water heater, fast-type (fast-type) electric water heater, water storage type electric water heater, small water heaters, solar water heaters,with overheating protection.
