ON OFF M Series Selector Red 3 Position 6008 Battery Switch
This battery switch is the most compact selector switch available on the market. It includes the removable side plates and back cover. This ignition protected battery selector switch offers a simple and economical way to separating two batteries. 3 x M10 terminal stud is tin-plated copper. Suitable for recessed or surface-mounting.
Specification
| Switch Type | Selector 3 Position |
| Color | Red |
| Switch Position | 3 |
| Battery Combine | No |
| Alternator Field Disconnect | No |
| Maximum Voltage | 32V DC |
| Stud Size | 3/8" |
| Terminal Stud Torque | 120 in-lb (13.56 Nm) |
| Continuous Rating | 300A |
| Intermittent Rating | 500A |
| Starting Rating 30 sec | 900A |
| Battery Inputs | 2 |
| Operation Temperature | -30°C~+60*C |
| Cable Clearance For 4/0 AWG Cables | 1.12in (28.45 mm) |
| Cable Size to Meet Ratings | 4/0 AWG (120mm²) 4/0 AWG (130mm²) |
| Mounting Holes | Accept #10 Screw |
| Stud Material | Tinned Copper |
| Stud Torque | 120 in-lb (13.56 Nm) |
| Switching Rating | 25A |
| Terminal Stud Size | 3/8" - 16 (M10) |
| Weight | 0.77lb (0.35 kg) |
Features
The on-off disconnect switch is designed for use on a single 12-48 volt battery. It can prevent unknown devices from draining the battery and save you from having to recharge it on a regular basis.
The patented Contour Locking System, allowing it to be a stand-alone unit, or locked together with other switches
This battery cut off kill switch has four removable side plates provide access of up to 1/0 cables. The rear cover insulating the rear terminals against any short circuits, ensuring that the switch meets ABYC requirements
Tin-plated copper studs and nuts; Ignition-protected
Function
Prevent leakage, protect the power supply, disconnect the battery safely.
Application
This battery master switch is widely used for Car, Marine, Boat, RV, Camper, Travel Trailer, Truck, ATV, UTV, Battery banks and other 0-48V Devices
Contact Details:
Andy Wu
Email: andy@tianrui-fuse.com.cn
MP/Whatsapp: +86 13532772961
Wechat: HFeng0805
Skype: andywutechrich
QQ: 969828363
|
|

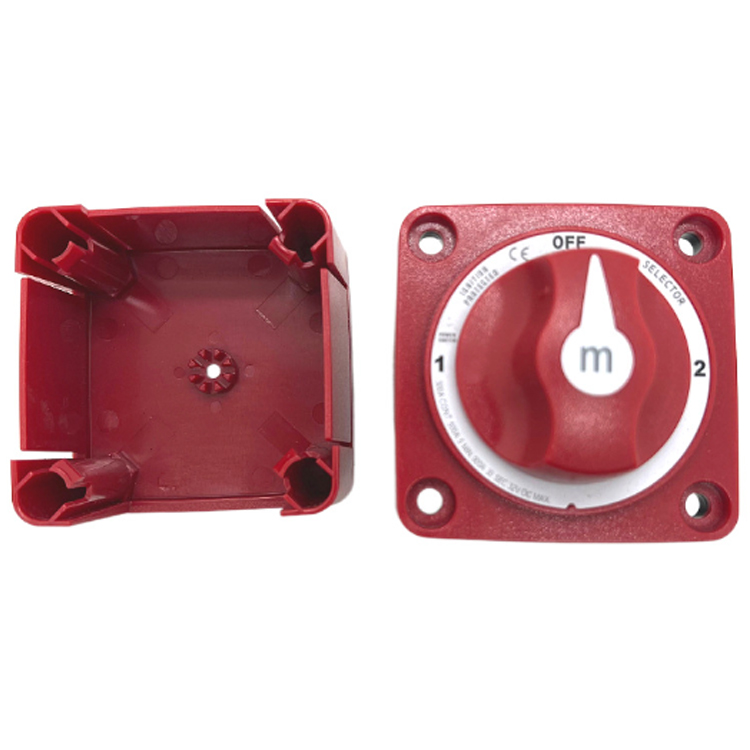

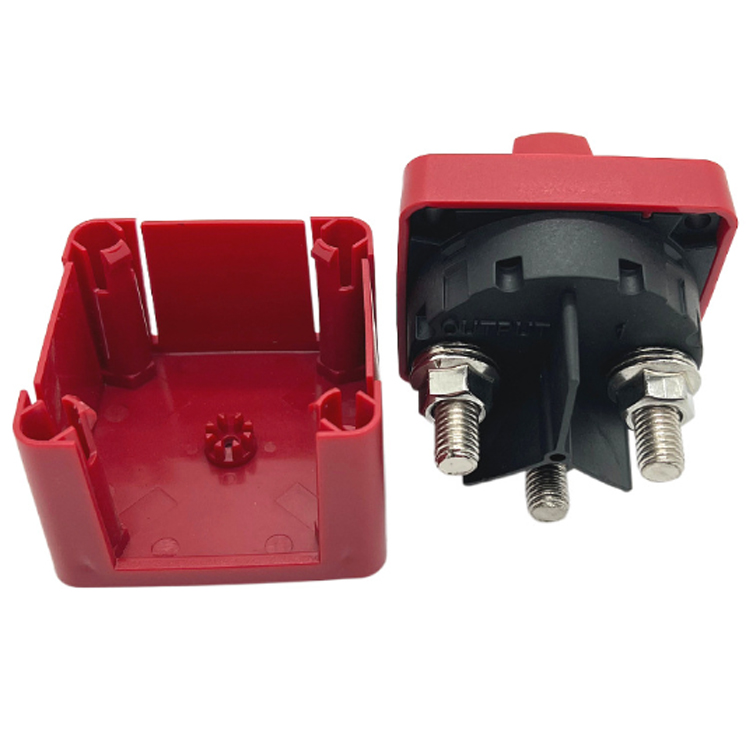

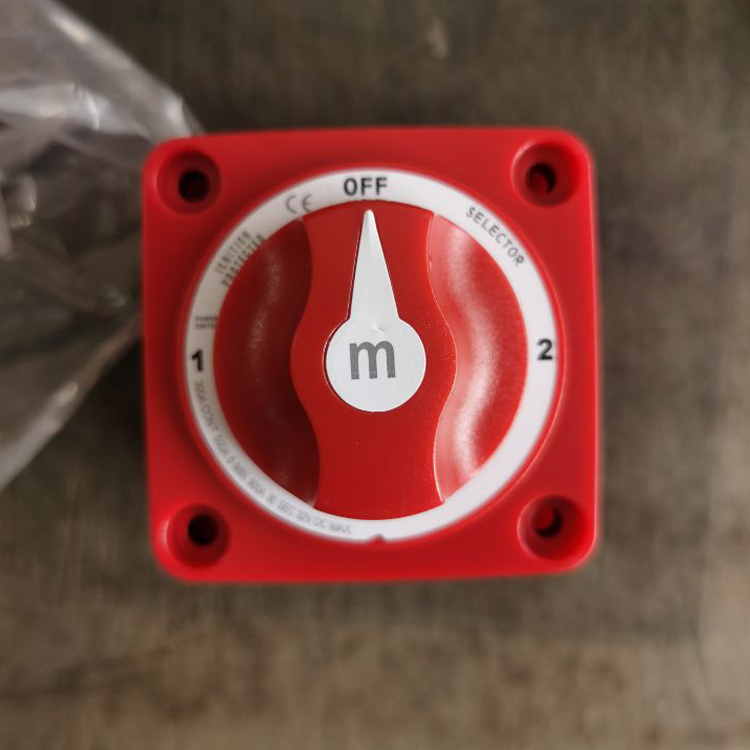

ON OFF M Series Selector Red 3 Position 6008 Battery Switch Images
|
